ClimateLine Pre-Finished Plasterboard

For many years we have a had a close connection to the manufacturing / modular design / commercial markets and our customers are continually looking for products that both save time and labour and of course look stylish.

Platinum Timber & Ply are now the national distributor of Climateline which is a new powder coated technology that can be applied to just about any wall and ceiling board product to give an exceptional finish and decreased installation time.

View Data Spreadsheets

Contact

Features & Benefits

Cost Effective – An economic solution that compares favourably with traditional wall lining solutions.
Durable – The tough powder-coated surface resists scratching and marring, easily cleaned and moisture resistant.
Simple – No painting or plastering required, scores and snaps like normal plasterboard and repairs well if accidentally damaged.
Clean & Contemporary – Available in a range of modern standard and custom colours.
Sustainable & Healthy – The Climate Decor Shield powder coated finish contains no VOC’s or heavy metals.
Versatile – Available in standard and moisture resistant grade plasterboard which can be be used on the wall and ceiling.

Climate Powder Coating Performance

Properties ClimateLine Panels	Typical Value	Test Method
Reaction to Fire	Group 1S (New Zealand) Group 1 (Australia)	Cone Calorimeter ISO 5660
Density	10mm Standard 7.0 kg/m2 13mm Standard 8.7 kg/m2 10mm Standard 7.0 kg/m2 10mm Aqua 7.8 kg/m2 13mm Aqua 10.7 kg/m2	CD
Hygiene	Pass	Surfaces to be smooth, non-porous and cleanable
Abrasion Resistance	1000 cycles	AS/NZS1580.403.2
Steam and Water Resistance	Coating unaffected after 24 hours exposure
Resistance to Household Cleaners	Pass	ASTM D3023
Resistance to Washing	Excellent. No change in gloss after repeated wash cycles	AS/NZS1580.459.1
Hardness	H	Pencil Hardness

Specifications

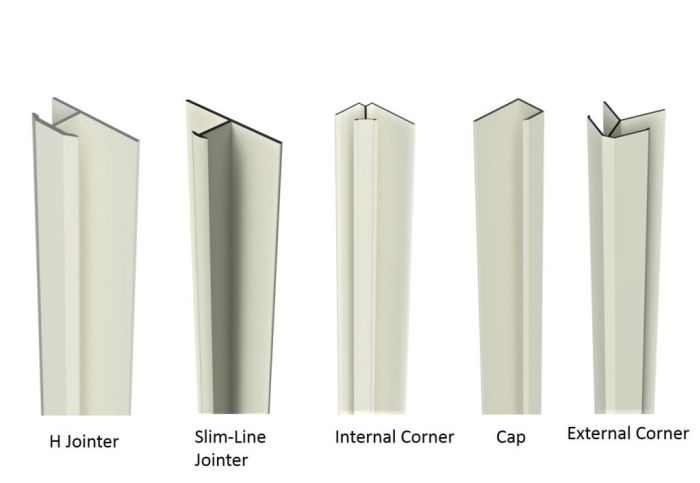

Trim Range

Board Range

ClimateLine Standard – standard plasterboard substrate for dry areas

ClimateLine Aqua – moisture resistant plasterboard substrate for wet areas

Available in a wide range of sizes and cut to size pieces

10mm ex stock, 13mm available made to order
Standard range of sizes
Available cut to size
Maximum length 4.8m
Standard width 1200mm, 1350mm made to order
Range of performance boards available on request

Colour Range

Colours and Finish

A range of contemporary colours ex stock. Custom colours available, lead times and minimum quantity applies.

The Climate Decor Shield finish is a matt, fine texture powder coat finish that provides superior consistency and performance.

Compliance

New Zealand – Complies to NZBC

Durability (B2.3.1c) — 5 years
Hazardous Building Materials (F2)
Reaction to Fire: C/UM2 Group 1-S
Manufactured using GIB Plasterboard compliant to ASNZS 2588
Manufactured in New Zealand from local materials

Australia – Complies to BCA

Durability – 10 year
Reaction to Fire: BCA C1.10 Group 1

In-Service History

14+ years of successful use in New Zealand and Australian markets
Significant number of commercial projects completed with substantiated long term performance
Prefab/modular construction projects for both residential and industrial applications

Installation Time Lapse

The Climate® powder coating process

*The information and media content on this page is sourced from Climate Surfaces.
For more information, please visit their site: https://climatesurfaces.com/

Resources

	Technical Note
	ClimateLine Brochure	Download PDF
	ClimateLine Technical Manual	Download PDF
	ClimateLine Repair Process	Download PDF
	Reaction to Fire Test Results	Download PDF
	ClimateLine Warranty	Download PDF
