Key points

• Structural flooring is the load-bearing layer that spans the joists and carries the floor, as distinct from the finish that goes on top of it.
• The four materials used across Australian residential builds are particleboard sheet flooring, structural plywood, fibre cement sheet and insulated structural panel.
• All four solve the structural job. Only one of them also solves the thermal job, and that difference is settled at specification, not on site.
• The cost comparison that matters to a builder is not sheet price per square metre, it is the number of trades and stages the floor takes to finish.
• Platinum “R” Floor is manufactured in Queensland and supplied nationally across Australia.

What Structural Flooring Has to Do

Structural flooring is the load-bearing layer of the floor. It spans between the joists, carries the loads above it, and transfers them into the framing and down to the footings. It is not the finish, because the timber, tile, vinyl or carpet a client eventually sees is laid on top of it and does no structural work.

Four materials do that job in Australian residential construction. Particleboard sheet flooring and structural plywood cover most of it, fibre cement sheet takes the wet areas and balconies, and insulated structural panel covers the floors that have to perform thermally as well as structurally. Platinum Timber & Ply manufactures Platinum “R” Floor in the fourth category, and the modern subfloor solutions available to a builder are wider than most specifications treat them.

The question is rarely which material is strongest, because all four are engineered to carry a residential floor. The question is how much of the floor’s total job each one finishes.

Particleboard Sheet Flooring

Particleboard sheet flooring is the default across most Australian residential construction, and for good reasons: it is cheap per square metre, available everywhere, and every carpenter has laid it. It is sold by tongue colour, which encodes the thickness and the joist centres it is rated for, so yellow tongue is the common thinner sheet, red tongue is used at wider joist spacing, and blue tongue is the heavy-duty option. The colour is the spec, which is why builders talk in colours rather than millimetres.

Its weakness is moisture, because particleboard is a bonded wood-particle product and if it gets wet and stays wet it swells at the edges and does not fully recover. That is manageable on a dry programme and a real problem on a wet one. It also does nothing thermally, so a particleboard floor over a ventilated void still needs underfloor insulation as a separate operation. The full Platinum “R” Floor versus yellow tongue and particleboard comparison goes further into where each is the right call.

Structural Plywood

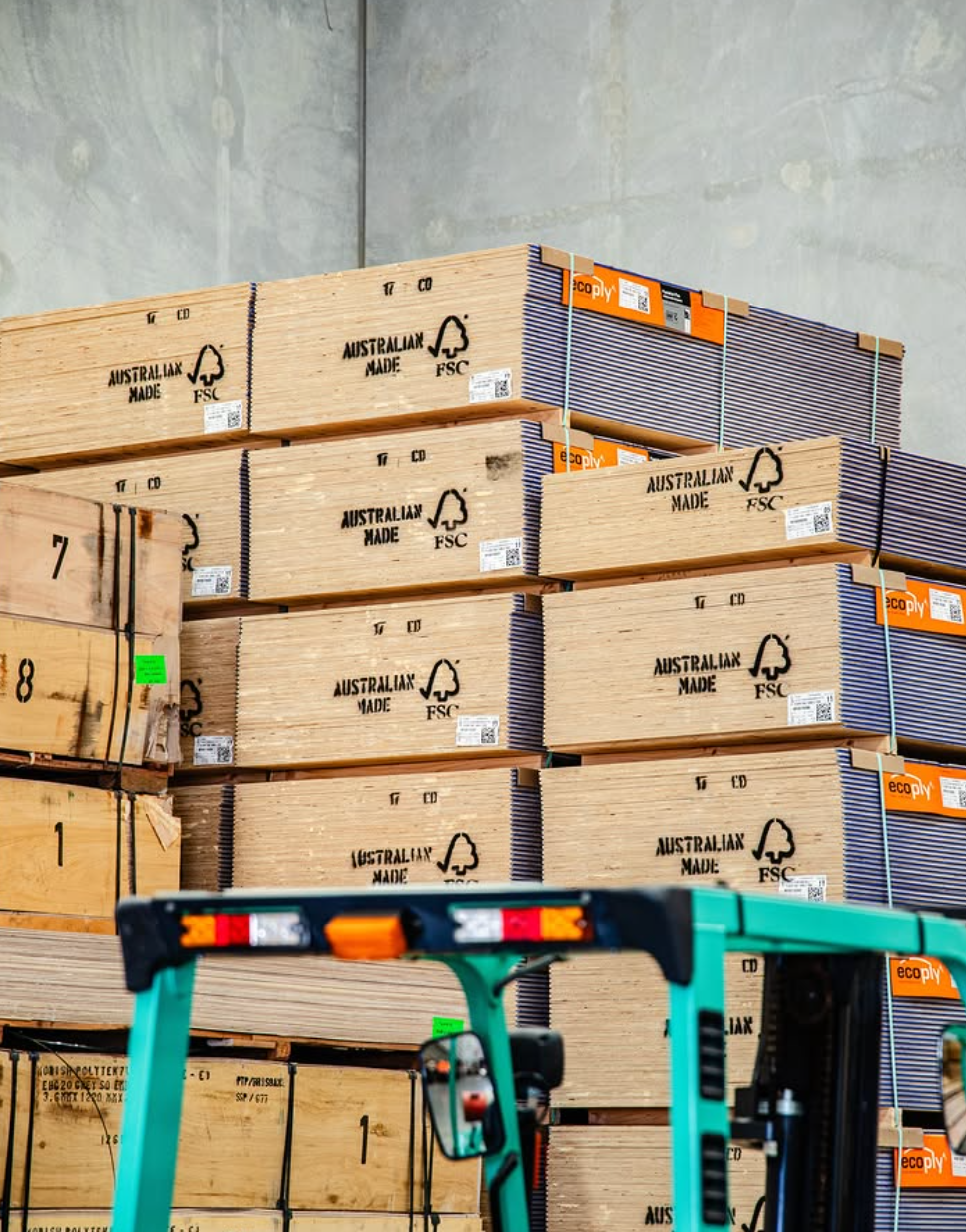

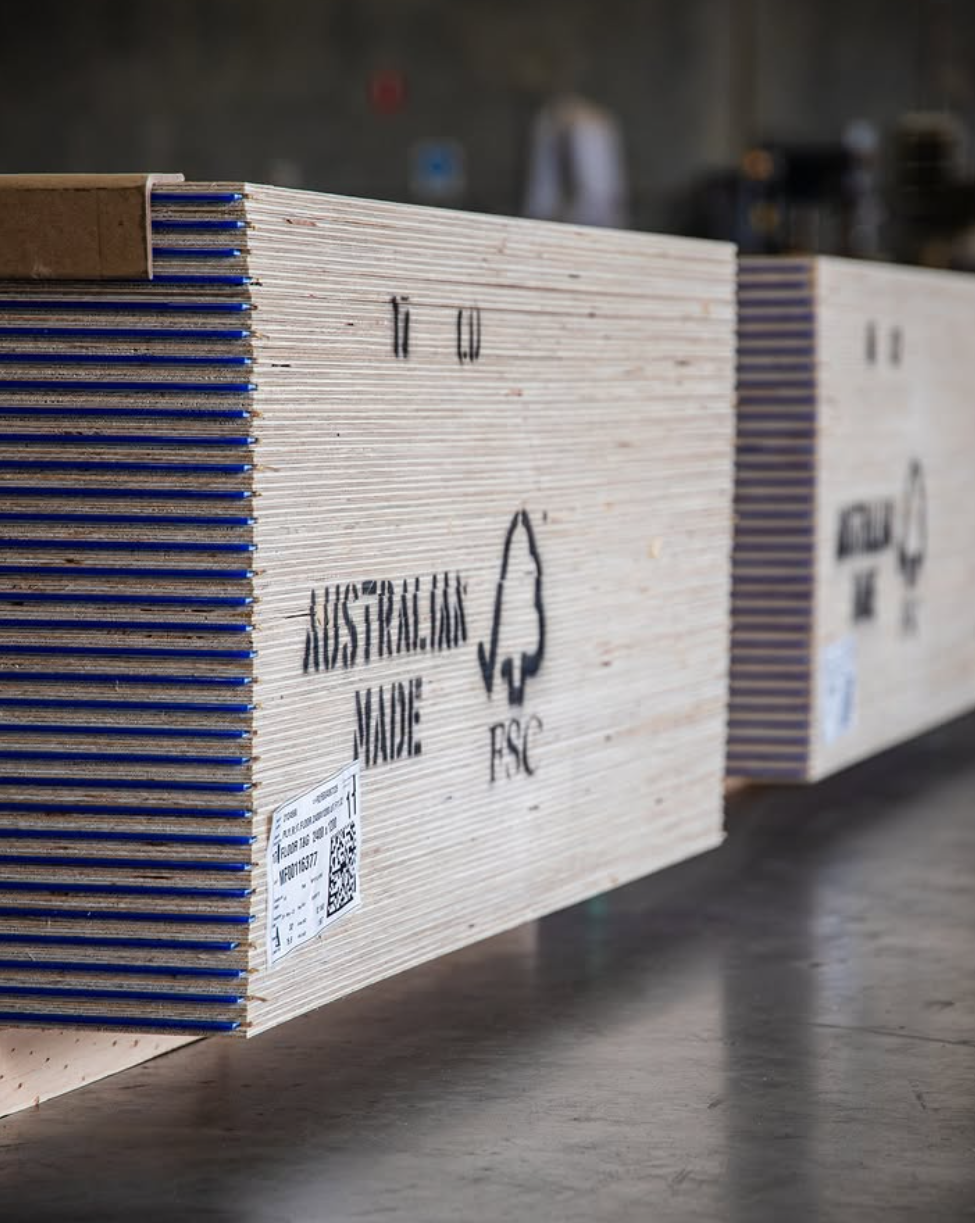

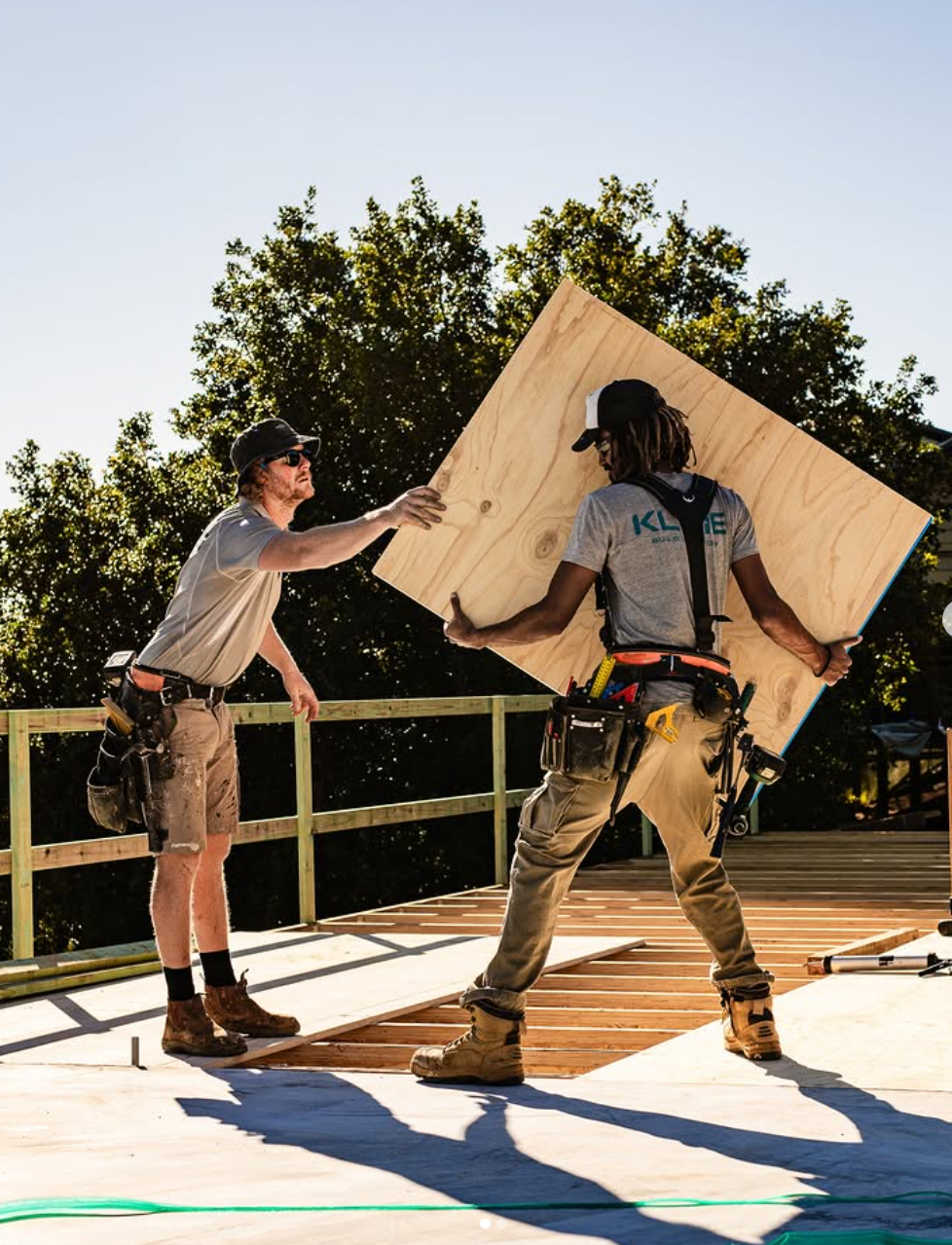

Structural plywood is the step up. It is cross-laminated, so it is dimensionally more stable than particleboard, it handles construction moisture far better, and it holds a fixing more reliably. Builders reach for it where the floor will be exposed for part of the build, where the span is demanding, or where the load is heavier than a standard residential floor, and it costs more per sheet than particleboard, which is the whole reason particleboard remains the default.

Plywood is also the structural skin used inside an insulated panel, so the same material doing the same structural work appears in both products. Platinum Timber & Ply supplies tongue and groove flooring for builds specified in plywood alone. Like particleboard, though, structural plywood is a purely structural answer: it spans, it carries, and it leaves the void beneath it exactly as it found it.

Fibre Cement Structural Flooring

Fibre cement structural flooring is the wet-area and balcony answer. It is a cement composite sheet, so water does not trouble it the way it troubles a wood-based product, and it gives a tile bed the rigidity a tiled floor needs. Its trade-offs are weight and workability, since it is heavier per sheet than the wood-based options and cutting it is dustier, slower work. The same reasoning applies to the heavier AAC products, and the Platinum “R” Floor versus Hebel PowerFloor comparison covers that end of the range.

It is also rarely specified for a whole floor. In practice it sheets the rooms that need it while a different structural sheet covers the rest, which leaves a floor with two structural materials, two set-out details and a junction between them. Forming wet-area set downs in a single floor material removes that junction rather than detailing it.

Insulated Structural Panel

An insulated structural panel carries the floor load and the insulation in one component. Platinum “R” Floor is a factory-made panel with structural plywood skins bonded to an insulated core, installed within standard framing.

The structural half is the same work the other three materials do, and the difference is the other half. On a particleboard, plywood or fibre cement floor the insulation is a separate stage fitted from underneath after the floor is down, by a trade working overhead in a crawl space. On an insulated panel it is already inside the sheet when the sheet arrives, and that matters beyond the programme, because insulation fitted overhead is only as good as the access and the workmanship on the day and it is the stage most likely to be trimmed when a job runs late. A builder specifying structural insulated panels for flooring is buying consistency as much as performance, which is the same argument behind suspended floor insulation generally.

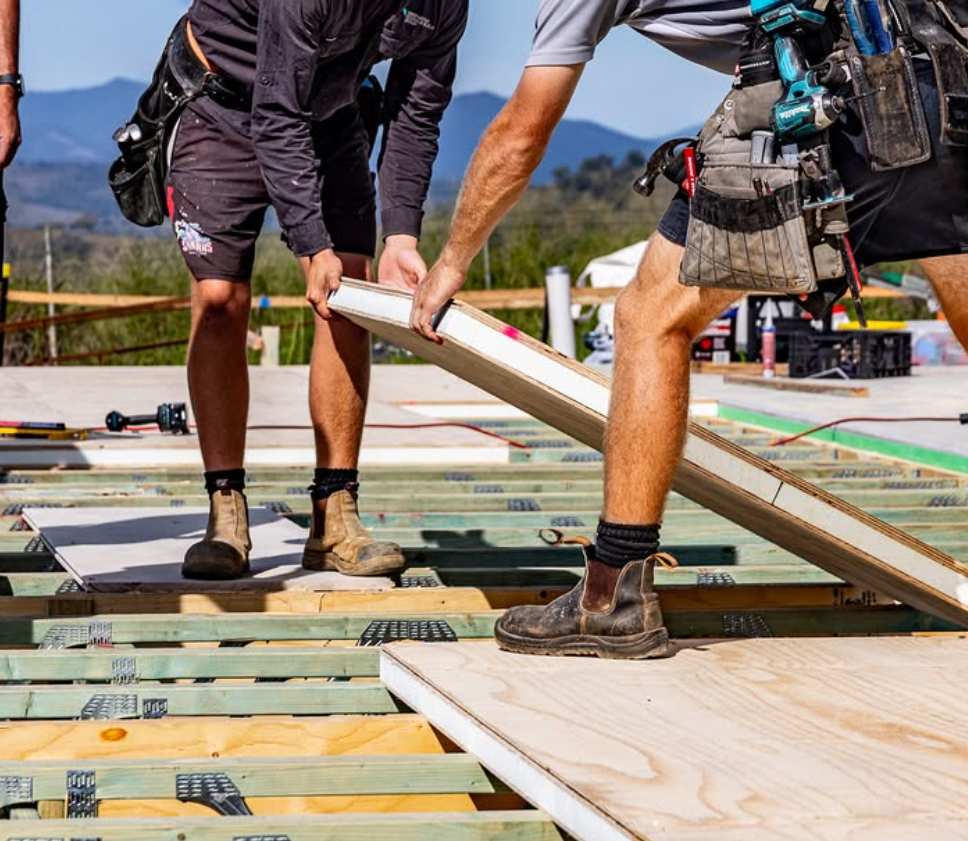

Platinum “R” Floor is installed within standard framing and does not replace structural framing. What it replaces is the two-stage process of laying a floor and then insulating underneath it, and the broader family of structural insulated panel systems works the same way across walls and roofs.

Structural Flooring Materials Compared

Every row gives the four answers in the same order: particleboard, structural plywood, fibre cement, then Platinum “R” Floor.

What Drives the Cost of Structural Flooring

Most structural flooring comparisons are settled on sheet price per square metre, and that is the number least likely to reflect what the floor actually costs. Four things move the real figure:

• The number of stages. A floor that is laid and then insulated is two operations with two trades, two scheduling dependencies and two chances to be held up. A floor that arrives insulated is one.
• Joist centres. A sheet rated for wider centres means fewer joists in the frame, and that saving sits in the framing bill rather than the flooring bill, which is why a sheet-price comparison misses it.
• Rework risk. A wood-based sheet rained on before the roof is on can need replacing, a cost that is invisible at quote and very visible in July.
• Whether the floor has to meet a thermal target at all. If it does, an uninsulated sheet has not finished the job, and the real difference is not the sheet but the insulation package plus the trade to fit it.

Platinum Timber & Ply does not publish panel pricing, because it is set per project on quantity, panel specification and freight to site. A fuller treatment of insulated subfloor and SIP panel cost in Australia sets out how those figures are built up.

The comparison worth running is not sheet against sheet. It is finished floor against finished floor.

Frequently Asked Questions

What is structural flooring?

Structural flooring is the load-bearing layer of a floor that spans the joists and carries the loads above it, as opposed to the floor covering laid on top. In Australian residential construction it is usually particleboard sheet, structural plywood, fibre cement sheet or an insulated structural panel. Platinum Timber & Ply manufactures Platinum “R” Floor, an insulated structural panel that carries the floor and insulates it in one component.

What is the best material for a subfloor?

It depends on what the floor has to do beyond carrying load. Particleboard is the cheapest per square metre and suits most dry residential work, structural plywood handles moisture and demanding spans better, and fibre cement is the wet-area answer. Where the floor also has to perform thermally, Platinum “R” Floor settles the structural and the insulation requirement in a single panel rather than in two separate stages.

Can you use particleboard flooring in a wet area?

Not as the finished wet-area substrate. Particleboard swells when it is wet for any length of time, so wet areas are normally sheeted in fibre cement or detailed with a set down and a different material. Platinum “R” Floor forms a wet-area set down without changing material or modifying joist heights, which removes the junction between two structural sheets.

Does structural flooring need insulation?

Only if the floor is expected to perform thermally, which on a suspended floor over a ventilated void it usually is. Particleboard, plywood and fibre cement are all purely structural, so each of them needs underfloor insulation fitted as a separate stage from below. Platinum “R” Floor has the insulation bonded inside the panel, so the floor and the insulation are laid in one operation.

Is structural plywood better than particleboard for flooring?

For moisture tolerance and dimensional stability, yes, and that is what builders pay the difference for. Particleboard remains the default because it is cheaper and the performance gap does not matter on a dry, well-sequenced programme. Platinum “R” Floor uses structural plywood as its skins, so a builder choosing it gets the plywood behaviour along with the insulation.

Does Platinum “R” Floor replace joists?

No. Platinum “R” Floor is installed within standard framing and does not replace structural framing. What it replaces is the two-stage process of laying a structural floor and then insulating underneath it, and it removes the need to notch or drop joists to form a wet-area set down.

Choosing Structural Flooring for the Whole Floor

All four of these materials will carry a floor. The question a specification actually answers is how much of the floor’s job the sheet finishes, and how much is left for somebody else to come back and do. That is the same question behind any suspended flooring system, where the void under the floor is the part most often left until later.

The cheapest sheet is not the cheapest floor. It is the cheapest half of one.

The floor panel systems and residential subfloor systems ranges cover standard residential work as readily as difficult sites, and builders working in Queensland can see local supply detail on their region’s page. To specify Platinum “R” Floor on a project, or to check supply and lead times for a site, contact the Platinum Timber & Ply team.

Key points

• A subfloor is the structural layer of a floor. It spans the framing and holds up the finished floor you actually see.
• Australian homes use five subfloor materials: particleboard, structural plywood, compressed fibre cement, concrete slab and structural insulated panels.
• How far apart the joists sit, and what the sheet or panel is rated for, decide how solid the floor feels.
• A floor built above the ground needs airflow underneath it, and the building code sets how much.
• Most subfloor problems come back to moisture, movement or a missing insulation layer.

The subfloor is the part of a house nobody sees and everybody stands on. It used to be treated as a given, but tighter energy rules and a lot more upper-floor living have made it a decision worth getting right, because it sets how flat a floor is, how warm it is and how quiet it is.

What Is a Subfloor?

A subfloor is the structural layer of a floor. It either spans between the floor joists or sits on a concrete slab, and it gives the finished floor a flat, solid surface to be laid on. It carries the weight of the building, the furniture and the people into the framing below, and while the house is going up it is the platform every following trade works off.

A timber floor is built in layers, and only one of them is structural:

• Joists and bearers – the framing that spans between piers, stumps or walls
• Subfloor – the structural sheet or panel fixed across that framing
• Underlay – an optional layer for levelling, acoustics or moisture
• Finished floor – the surface you see and walk on

The finished floor is chosen on looks and wear, so whether a room ends up with carpet, tile or hardwood tongue and groove flooring, the subfloor underneath is what holds it up. It is also part of the shell of the building, which is why the choice affects heating bills and footfall noise as much as it affects how the floor feels. That is the starting point for comparing residential subfloor systems.

Subfloor Materials Used in Australian Homes

Five materials cover almost every home built in Australia. What matters is not the material name so much as the specific sheet or panel and what it is rated to span.

Particleboard is the cheapest sheet on the pallet. Structural plywood costs more but is stiffer and copes better with getting wet, which is why plywood flooring gets specified where particleboard would be a risk. Both of them still need a separate insulation product, fitted by a separate trade, and that extra stage is the main thing that separates them from modern subfloor solutions. Set side by side, the four structural flooring options differ less on strength than on how much of the floor’s job each one finishes.

Joists, Bearers and How Far Apart They Sit

A subfloor is only as good as the framing under it. The spacing between joists, called the joist centres, decides how much a floor flexes when you walk across it. Closer joists make a stiffer floor, wider spacing means fewer joists and less labour, and sheet flooring is manufactured in grades matched to particular spacings, so the manufacturer’s span table is what governs.

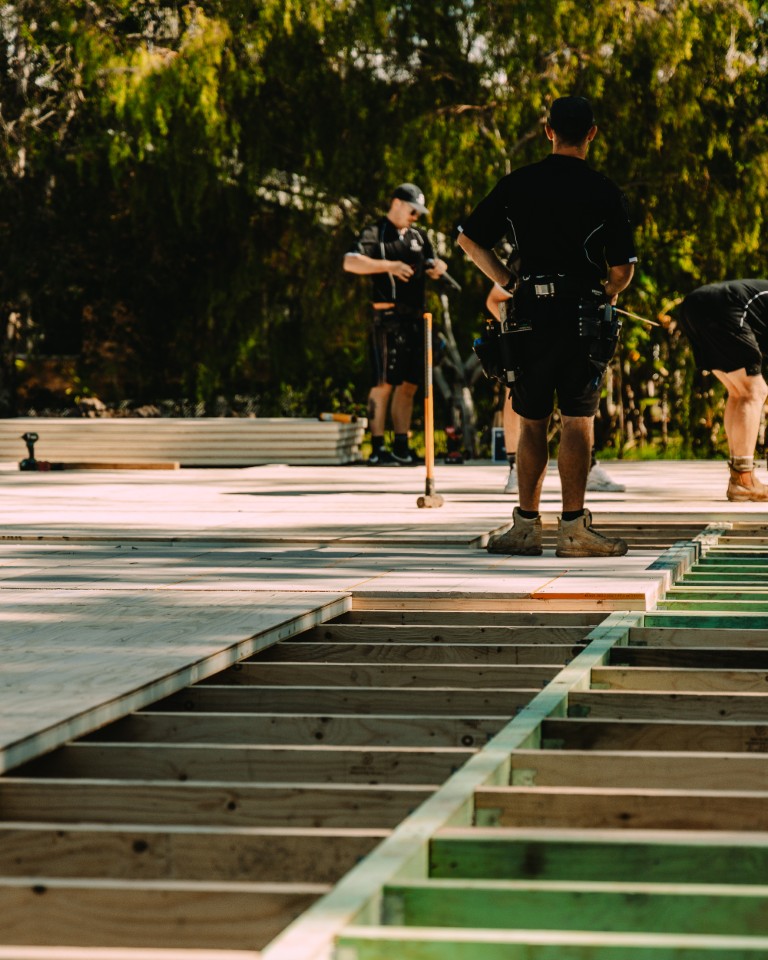

Panel systems publish their own limits. Platinum “R” Floor gives a recommended maximum joist centre of 800mm, a minimum joist thickness of 45mm, and blocking under any load bearing wall. It is fixed over the joists rather than replacing them, and it works as readily over steel framing as timber, making Platinum “R” Floor and steel joists an increasingly common pairing in modern construction. Actual spans and load cases are always determined by the project engineer.

Why a Subfloor Needs Airflow

When a floor sits above the ground rather than on it, the space underneath has to be ventilated. This is a building code requirement, not just good practice, and it applies to suspended floors generally, including timber and steel framed floors and suspended slabs.

The code sets both the size and spread of the vents in the walls around that space and the minimum gap between the ground and the lowest piece of framing, and the amounts change depending on how humid the local climate is. Damp or flood-prone ground calls for more. Because a new edition of the National Construction Code is currently being taken up state by state, it is worth confirming what applies where you are building rather than assuming.

Airflow deals with moisture. It does nothing about heat, so an exposed underfloor stays a cold spot in winter unless the subfloor itself handles the insulation. That trade-off is built into all suspended flooring systems, and it is settled by what goes into the floor rather than by how well the void is ventilated.

What Goes Wrong With Subfloors

Subfloor problems rarely show up at handover, and they get expensive once the floor coverings are down. The recurring ones are:

• Moisture and swelling – sheets left exposed to weather before the roof is on can swell at the edges and show through the finished floor
• Not enough airflow – a poorly ventilated underfloor space holds damp against the framing
• Bounce and squeaks – joist spacing or fixings that do not match what the sheet is rated for
• Heat loss – an uninsulated floor over an open underfloor space works against the energy rating of the whole house, which is what suspended floor insulation is there to prevent
• Footfall noise – a light, uninsulated floor carries impact sound between storeys, which is where the acoustic advantage of an insulated floor shows up
• Wet area detailing – a common source of rework, so wet area set downs are worth settling early

Where an Insulated Panel Fits Among the Options

A structural insulated panel is the newest of the five and the only one that turns up with the insulation already in it. Two structural skins are bonded either side of an insulating core, which is what makes structural insulated panel systems behave as one piece rather than a stack of layers.

These panels are not a niche product for difficult sites. They suit ordinary suspended floors, upper storeys, bathrooms and other wet areas, and they are widely used in modular and prefabricated construction because a factory-made panel arrives consistent and ready to fix. Anywhere a floor needs to be structural and insulated at once, the same panel does both jobs.

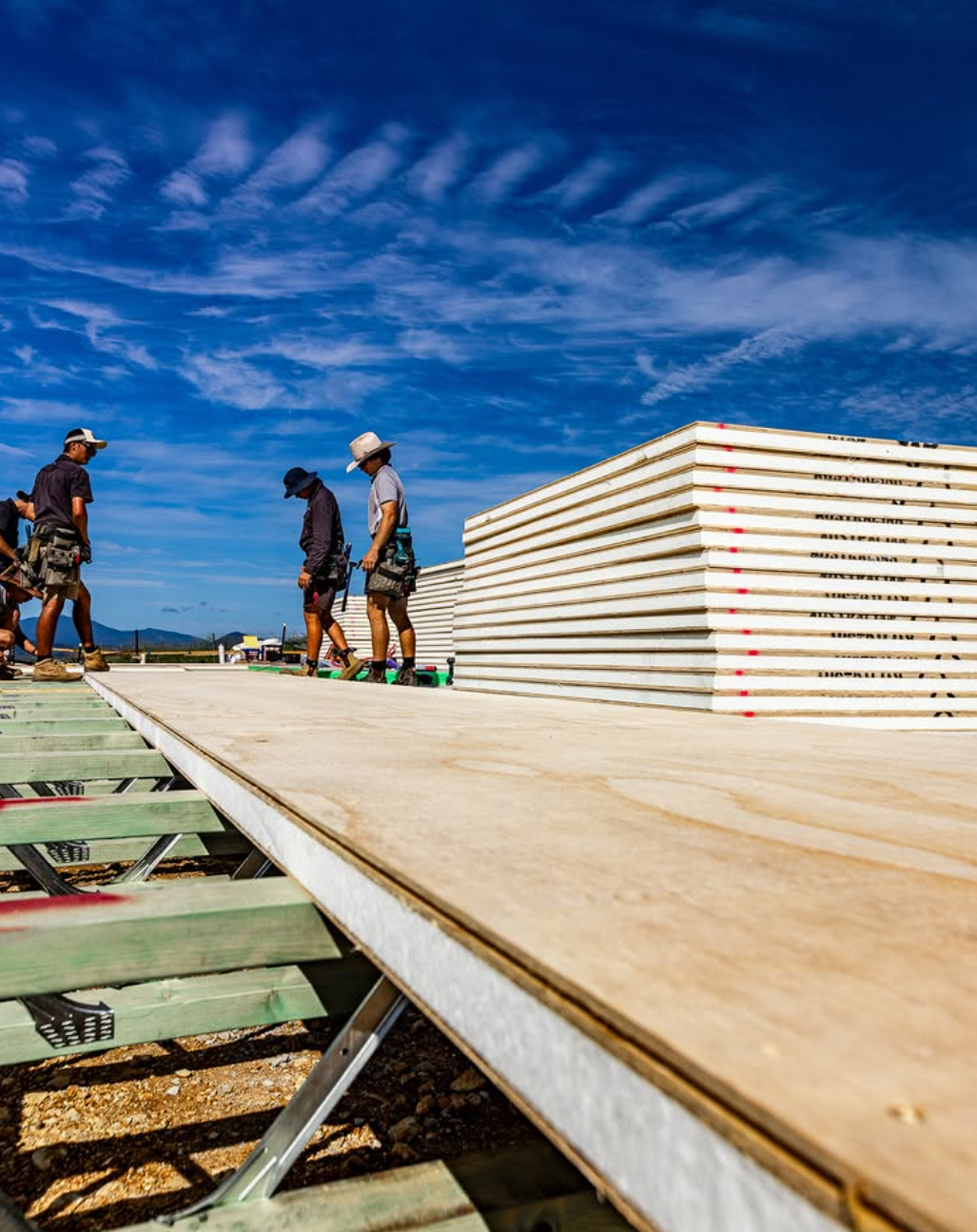

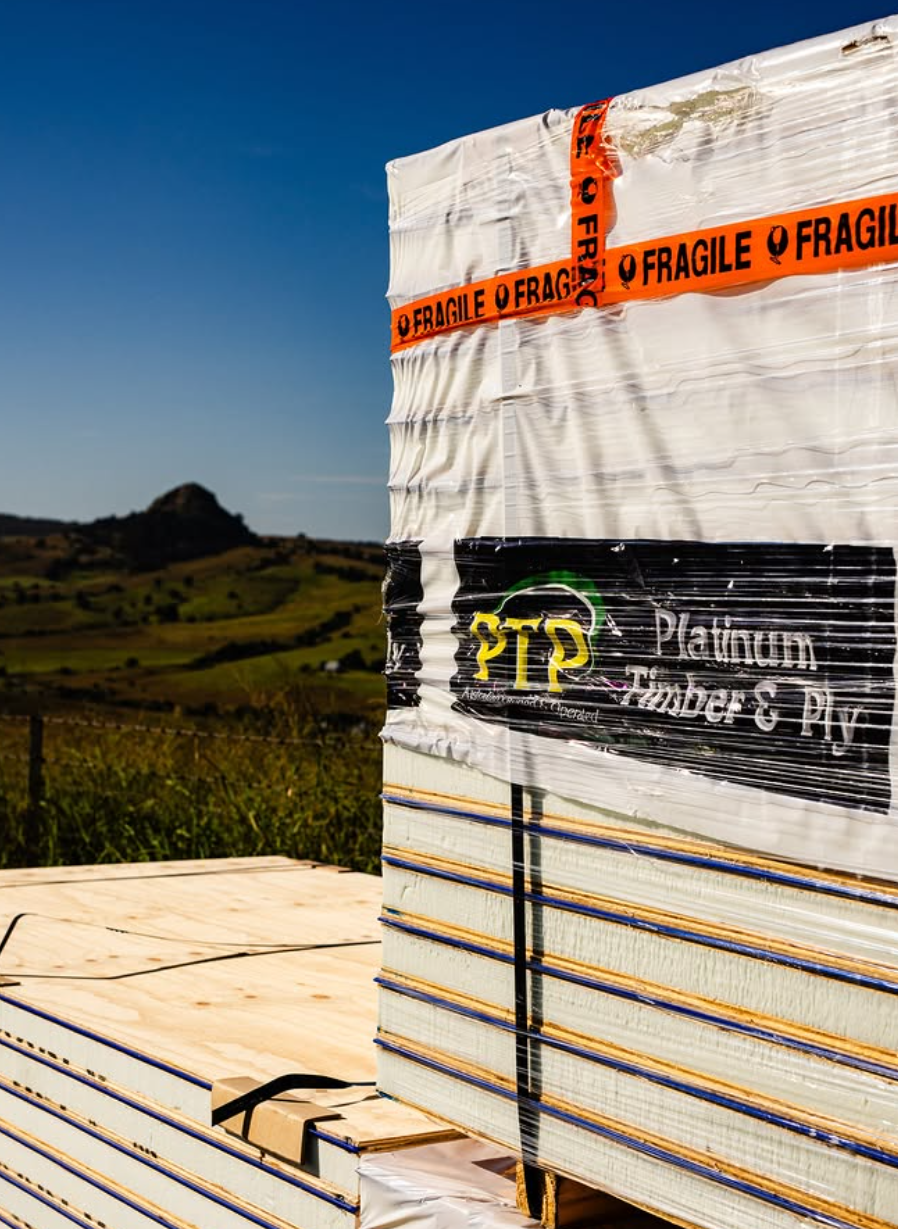

Platinum “R” Floor is built from structural plywood skins over an Australian manufactured foam core, in four thicknesses: 54mm at R1.2, 64mm at R1.5, 84mm at R2.0 and 99mm at R2.5. The timber carries Responsible Wood Certification under AS 4708. Because the insulation is already in the panel, there is no second product to buy and no second trade to book, which is most of why builders are switching to insulated subfloor systems. Against the sheet most Australian houses are built on, the differences are set out in this comparison of Platinum “R” Floor and yellow tongue particleboard.

Frequently Asked Questions

What is a subfloor in Australia?

In Australia a subfloor is the structural layer fixed across the floor joists, or the concrete slab itself, that carries the building’s loads and gives the finished floor a flat surface to sit on. Platinum Timber & Ply supplies the panel version of that layer as Platinum “R” Floor, which builds the insulation in rather than leaving it as a separate job.

What is the difference between floorboards and a subfloor?

Floorboards are the finished surface you see and walk on, chosen for appearance and wear. The subfloor is the structural layer underneath doing the load-bearing work. Because it is buried once the house is finished, Platinum Timber & Ply encourages builders to settle the subfloor at design stage rather than on site.

What material is best for a subfloor?

It depends on what the floor has to do, since a ground-level slab, a bathroom and an upper-storey floor all ask for different things. Particleboard is the cheapest, structural plywood is stiffer and handles damp better, and compressed fibre cement suits wet areas. Where the floor also needs to be warm and quiet, Platinum “R” Floor covers the structure and the insulation in one panel.

Does a subfloor need insulation?

A floor built above a ventilated underfloor space is part of the shell of the building, so leaving it uninsulated works against the energy performance of the house and makes the floor cold underfoot. Platinum “R” Floor puts the insulation inside the panel, with published values from R1.2 at 54mm through to R2.5 at 99mm, so there is no separate insulation stage.

Does a subfloor need ventilation?

Yes. Where a floor is suspended above the ground, the National Construction Code requires the space underneath to be ventilated, with vent sizes and a minimum ground clearance that vary with the local humidity. That airflow controls moisture but not heat loss, and closing that gap is what Platinum “R” Floor is designed to do.

Choosing a Subfloor With the Whole Floor in Mind

A subfloor has to be right the first time. It is structural, it gets buried, and it sets how every room above it performs. Comparing options on the price of a sheet alone leaves out the second product and the second trade a conventional subfloor still needs.

Anyone working through a specification can talk to the Platinum Timber & Ply team about insulated subfloor systems for modern residential construction, compare the structural insulated panels for flooring and floor panel systems for builders against a conventional build-up, look at the SIP flooring systems used on residential projects, or check supply across Queensland and nationally. The subfloor is not the part of a build to leave to habit. It is the part that decides how the rest of the floor performs.

Key points

• Hebel Powerfloor is a flooring system made from autoclaved aerated concrete (AAC) panels.
• Platinum “R” Floor is a Structural Insulated Panel (SIP) that combines structural plywood flooring and a dedicated insulation core in one panel.
• The main differences for builders are the panel material, weight and handling, how each delivers insulation, and the finished floor surface.
• Both are suspended flooring systems that work with standard framing, so the choice comes down to weight, insulation and how the floor will be finished and fixed.

For builders looking at an alternative to Hebel Powerfloor, the short answer is that Hebel Powerfloor is an aerated concrete panel that creates a solid, concrete-style floor, while Platinum “R” Floor is a structural insulated panel that combines a plywood flooring surface with a built-in insulation core. Each suits different priorities around weight, insulation and finishing.

This comparison sets out how the two systems differ, so builders can weigh them up on the factors that actually affect the build.

What Is Hebel Powerfloor?

Hebel Powerfloor is a suspended flooring system made from autoclaved aerated concrete (AAC), the same lightweight-concrete material used across the Hebel range. The panels create a solid, concrete-style floor and are commonly chosen for their fire resistance, acoustic mass and the feel of a concrete floor on a suspended structure.

As an aerated concrete product, Powerfloor delivers its performance through the properties of the concrete panel itself, and any additional insulation is considered separately from the panel.

What Is Platinum “R” Floor?

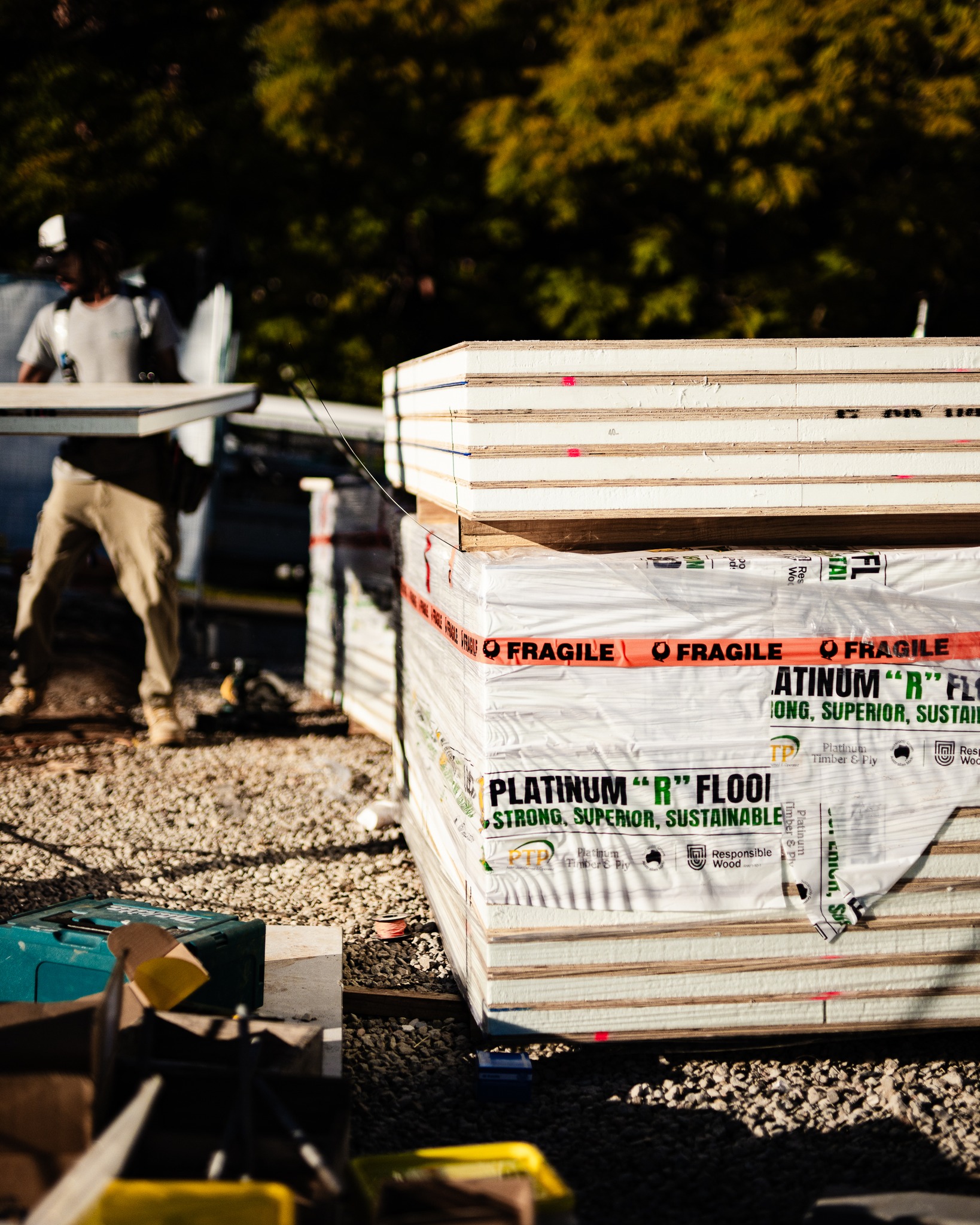

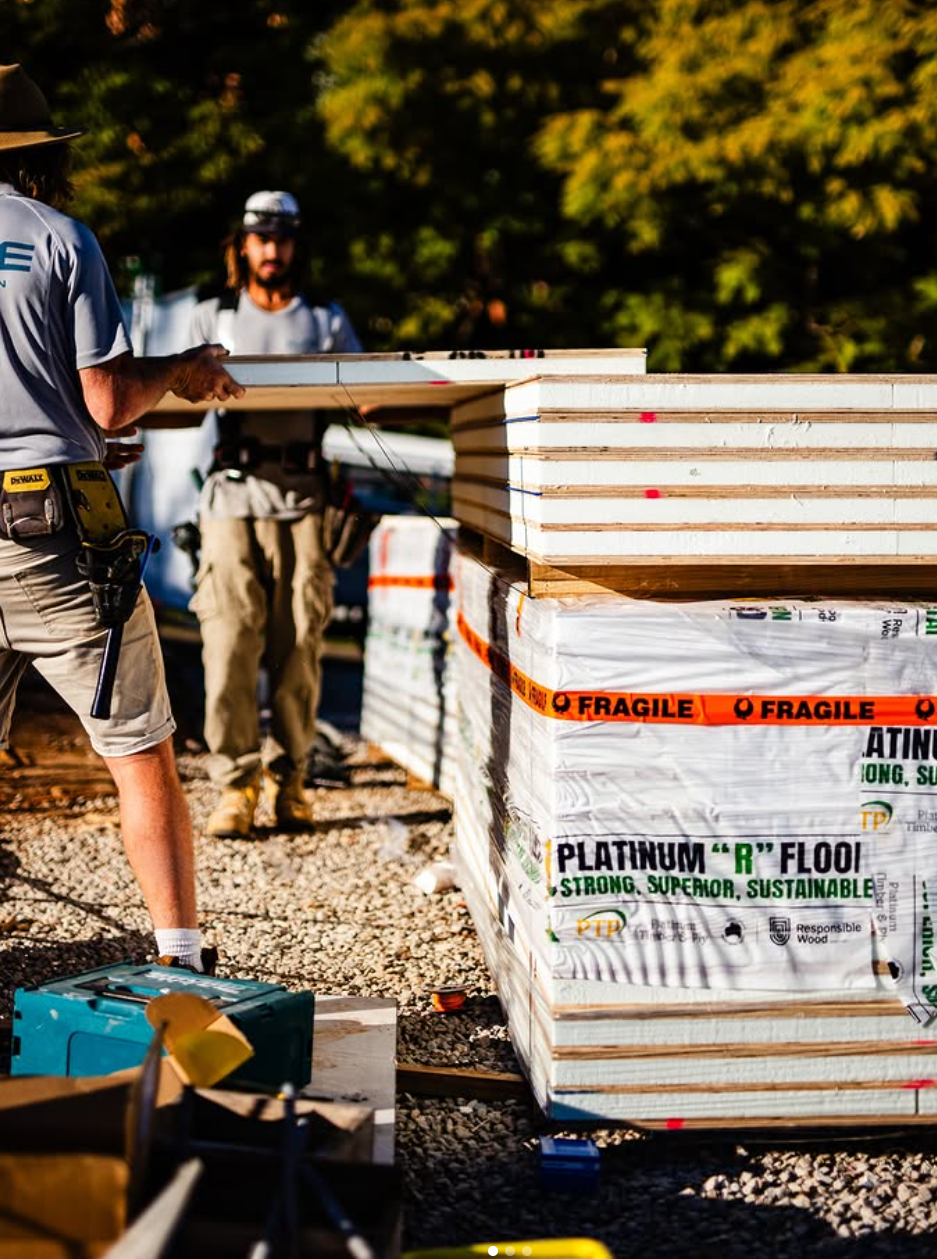

Platinum “R” Floor is an insulated subfloor system built on structural insulated panel (SIP) technology, combining structural plywood flooring with a dedicated insulation core in a single panel. Where an aerated concrete system relies on the concrete for its performance, Platinum “R” Floor integrates purpose-made insulation into the floor and presents a structural plywood surface to build on.

It sits within a wider range of insulated subfloor systems for modern residential construction, and it works on the same principle as other structural insulated panel systems, with two structural skins bonded either side of an insulating core.

Hebel Powerfloor vs Platinum “R” Floor: The Comparison

The table below sets out the practical differences that matter on site.

Weight and Handling on Site

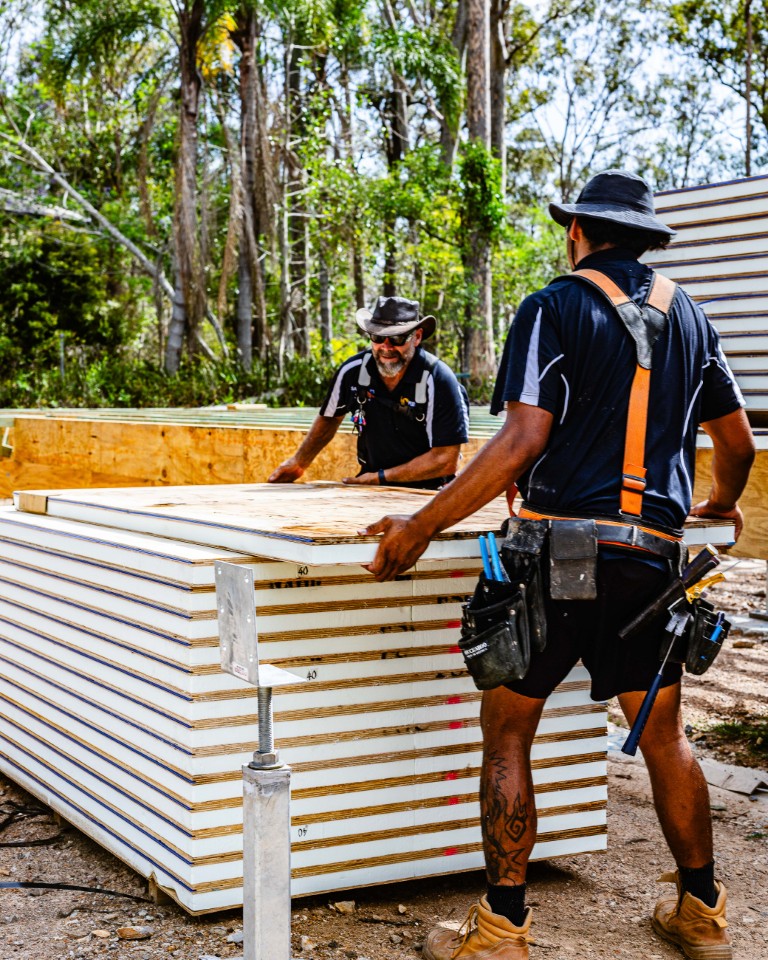

Weight is one of the clearest practical differences, because an aerated concrete panel is heavier to move and place than a plywood-faced floor panel. Platinum “R” Floor is lighter to handle on site, which can simplify placement on upper levels and on jobs where crane or manual handling is a consideration. It also pairs well with timber and steel-framed floors.

How Do They Compare on Insulation?

This is where the two systems differ most in approach. Hebel Powerfloor delivers its thermal behaviour through the aerated concrete panel, so where a project needs additional insulation value it is generally handled as a separate consideration.

Platinum “R” Floor builds a dedicated insulation core into the panel, so the floor contributes purpose-made insulation to the building envelope as soon as it is laid. This integrated approach is a large part of why SIPs deliver superior insulation, and it is particularly relevant on elevated and multi-storey homes where the underside of the floor is exposed.

The Finished Floor Surface

Hebel Powerfloor produces a concrete substrate, which is finished in the way a concrete floor would be. Platinum “R” Floor presents a structural plywood surface, which gives builders a familiar timber floor to fix to and build on using standard methods. For builders who want a conventional structural flooring surface with insulation already built in, that plywood face is a practical advantage.

Where Hebel Powerfloor Is Commonly Used

Hebel Powerfloor is often chosen where a concrete floor feel, acoustic mass and fire resistance are the priority. It is an established product, and the point of this comparison is not that one system is always better, but that a SIP and an aerated concrete panel are built around different priorities.

Why Builders Choose Platinum “R” Floor

Platinum “R” Floor suits residential construction of all kinds and gives builders a clear set of advantages:

• A dedicated insulation core built into the floor, contributing to the building envelope from the moment it is laid
• A lighter panel that is simpler to handle and place on site
• A structural plywood surface that builds and fixes like a conventional timber floor
• Fewer installation stages, with structure and insulation delivered in one step
• Factory-manufactured consistency across projects, including strong acoustic performance

These qualities carry across our modern subfloor solutions, and supply across Brisbane is arranged per project. Set against timber-based options, yellow tongue and particleboard is the other side of the same decision.

Frequently Asked Questions

What is the alternative to Hebel Powerfloor?

Platinum “R” Floor from Platinum Timber & Ply is a direct alternative to Hebel Powerfloor. Instead of an aerated concrete panel, it uses a structural insulated panel that combines a plywood flooring surface with a built-in insulation core, giving builders a lighter, insulation-integrated floor.

Is Platinum “R” Floor lighter than Hebel Powerfloor?

Yes. As a plywood-faced structural insulated panel, Platinum “R” Floor is lighter to handle than an autoclaved aerated concrete panel like Hebel Powerfloor. That lower weight can make placement simpler on upper levels and on sites where handling is a constraint, which is one reason builders choose Platinum “R” Floor.

Does Platinum “R” Floor provide insulation like Hebel?

Platinum “R” Floor includes a dedicated insulation core built into the panel, so insulation is integrated into the floor itself rather than delivered through the properties of a concrete panel. This means the Platinum Timber & Ply system contributes purpose-made insulation to the building envelope as soon as the floor is laid.

Hebel Powerfloor or SIP flooring for elevated homes?

Both are used on elevated homes, but Platinum “R” Floor is particularly well suited to them because its built-in insulation addresses the exposed underside of the floor and its lighter weight simplifies handling at height. Platinum Timber & Ply supports these builds with a floor that delivers structure and insulation in a single step. That matters most on elevated and multi-storey homes, where the underside of the floor is exposed and the floor becomes part of the building envelope.

Can you fix directly to Platinum “R” Floor?

Platinum “R” Floor presents a structural plywood surface, so builders work with it as a conventional timber floor rather than a concrete substrate. This familiar surface is a practical reason builders choose the Platinum Timber & Ply system when they want insulation built in without changing how they finish and fix the floor.

Does Platinum “R” Floor work with standard framing?

Yes. Platinum “R” Floor works within standard framing methods and does not replace the structural framing of the build. This lets builders adopt the Platinum Timber & Ply system without changing how they frame, while gaining integrated insulation and installation-stage savings at the subfloor.

Choosing Between Hebel Powerfloor and Platinum “R” Floor

Hebel Powerfloor and Platinum “R” Floor both create a suspended floor, with Hebel delivering a concrete-style panel and Platinum “R” Floor delivering a lighter structural insulated panel with a plywood surface and a built-in insulation core. For builders who want integrated insulation, easier handling and a conventional flooring surface, Platinum “R” Floor is a strong alternative. Against the wider field, the structural flooring materials available to a residential build come down to particleboard, plywood, fibre cement and insulated panel.

Platinum “R” Floor handles both jobs in one panel, and the same approach carries through the wider range of structural insulated panels for flooring. For advice on the right subfloor for a specific project, contact the Platinum Timber & Ply team.

Key points

• There is no single fixed price for an insulated subfloor or SIP panel in Australia; cost depends on the panel specification, floor area, site and delivery region.
• Compare the total installed cost (flooring plus insulation plus labour across all stages), not the sheet price alone.
• Platinum “R” Floor combines structural flooring and insulation in one panel, which removes a separate insulation stage and its labour.
• For an accurate figure, request a quote with your floor area, specification and location.

For builders pricing an insulated subfloor or SIP panel floor in Australia, there is no single per-square-metre figure, because the cost depends on the panel specification, the floor area, the site and the delivery region. The more useful number is the total installed cost across flooring, insulation and labour, where an integrated panel such as Platinum “R” Floor can close the gap on a cheaper sheet by removing a separate insulation stage.

This guide sets out what actually drives the cost of an insulated subfloor, so builders can compare options on a fair basis and get an accurate price for a specific project.

What Drives the Cost of an Insulated Subfloor?

Several factors move the price of an insulated subfloor or SIP panel floor, which is why a single headline rate rarely reflects what a project will actually cost:

• Panel specification – thickness, structural rating and the level of insulation built into the panel
• Floor area – the total square metres, and how the panel sizes suit the floor layout
• Site and build type – elevated homes, sloping blocks and multi-storey builds place different demands on the floor
• Region and delivery – where the project is and how far the panels travel
• Labour – how many installation stages the system involves and how much trade coordination it needs

Because these vary from job to job, the fairest way to compare systems is on total installed cost rather than the price of a single sheet.

Why Sheet Price Alone Is Misleading

A per-sheet or per-square-metre price only covers part of the picture, because a subfloor also has to deliver insulation and be installed. A cheaper structural sheet that still needs a separate underfloor insulation product, plus the extra labour and sequencing to install it, can cost more once the whole subfloor is finished.

This is why builders comparing an insulated subfloor with a traditional floor should add up flooring, insulation and labour together. It is also a large part of why more builders are switching to insulated subfloor systems.

Comparing the True Cost of a Subfloor

The table below shows the cost components a builder should weigh up, rather than the sheet price on its own.

How Platinum “R” Floor Affects the Cost

Platinum “R” Floor combines structural plywood flooring and a dedicated insulation core in one panel, so the insulation and much of the labour that sit outside a traditional sheet price are already accounted for. For builders, that changes the cost conversation from sheet price to value delivered:

• The insulation is included, rather than bought and installed separately
• Fewer installation stages mean less labour and less trade coordination at the subfloor
• Factory-manufactured consistency reduces the risk of rework across projects
• A faster subfloor phase helps keep the wider program on schedule

These savings sit alongside the performance benefits covered in why SIPs deliver superior insulation, and they apply across our structural insulated panels for flooring and floor panel systems for builders.

How the Cost Compares to Other Subfloor Options

Cost is one of the main reasons builders compare an insulated subfloor with the alternatives. Two comparisons cover the options builders raise most often: Platinum “R” Floor vs yellow tongue and particleboard for the traditional low-cost sheet, and Platinum “R” Floor vs Hebel Powerfloor for the aerated concrete option. Both look at where the total cost, not just the sheet price, lands.

How to Get an Accurate Price

The most reliable way to price an insulated subfloor is to request a quote for the specific project, because the figure depends on area, specification, site and region. Builders can speed this up by having the floor area, the build type and the project location ready. To price a project, request a quote from the Platinum Timber & Ply team.

Frequently Asked Questions

How much does an insulated subfloor cost in Australia?

There is no single national rate, because the cost depends on the panel specification, floor area, site and delivery region. The most useful comparison is the total installed cost across flooring, insulation and labour, and Platinum Timber & Ply can provide an accurate figure for a specific project through a quote.

How much do SIP panels cost per square metre?

A per-square-metre figure varies with the panel thickness, structural rating and insulation level, so it is best confirmed for the actual project rather than taken from a headline rate. For Platinum “R” Floor, request a quote with your floor area and specification and Platinum Timber & Ply will price it for the build.

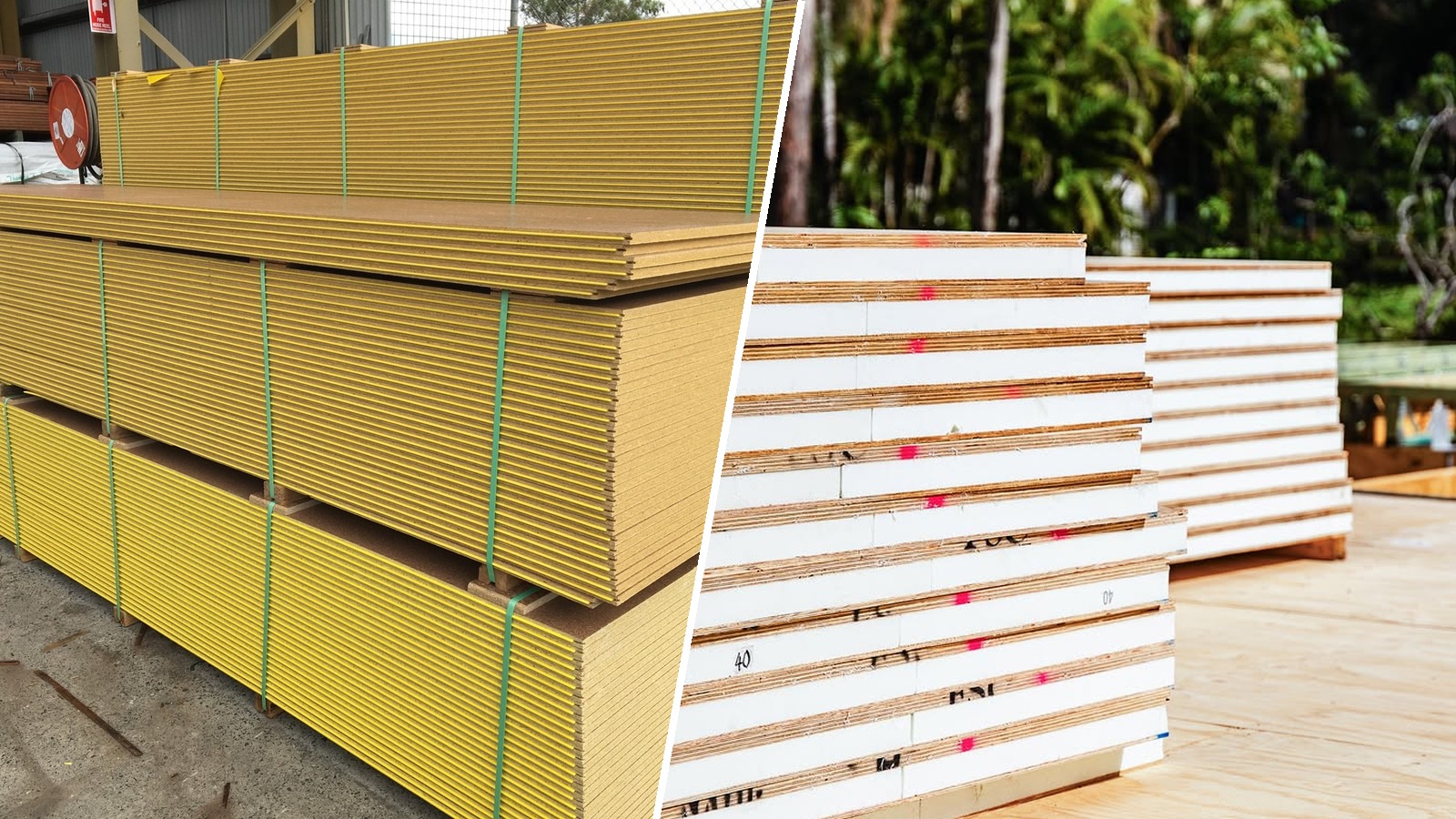

Is Platinum “R” Floor more expensive than particleboard or yellow tongue?

The sheet prices are not directly comparable, because Platinum “R” Floor includes the insulation and removes a separate installation stage that a particleboard floor still needs. Measured on total installed cost across flooring, insulation and labour, Platinum “R” Floor closes much of the gap, which is where it separates from yellow tongue and particleboard.

Does an insulated subfloor save money overall?

It can, because combining structural flooring and insulation into one panel removes a separate insulation product and its labour, and it reduces the installation stages a builder has to schedule. Platinum “R” Floor is designed around this efficiency, so the saving shows up in the total installed cost and the build program rather than the sheet price.

How do I get a price for Platinum “R” Floor?

Request a quote from Platinum Timber & Ply with your floor area, build type and project location, and the team will price the specific job. This gives a far more accurate figure than a general per-square-metre rate, because Platinum “R” Floor is priced to the project requirements.

Pricing an Insulated Subfloor the Right Way

An insulated subfloor or SIP panel floor does not have a single fixed price in Australia, and the sheet rate alone will not tell a builder what a project costs. The fair comparison is the total installed cost across flooring, insulation and labour, where an integrated system like Platinum “R” Floor earns its place by including the insulation and removing a separate installation stage.

To price a specific project, contact the Platinum Timber & Ply team for a quote on insulated subfloor systems for modern residential construction.

Key points

• Yellow tongue flooring is structural particleboard, which provides structure but no insulation.
• Platinum “R” Floor is a Structural Insulated Panel (SIP) that combines structural plywood flooring and insulation in one panel.
• The main practical differences for builders are moisture behaviour, thermal performance and the number of installation stages.
• Particleboard remains a low-cost structural floor, while Platinum “R” Floor adds built-in insulation, fewer installation stages and stronger thermal performance across residential builds.

For builders comparing subfloor options, the short answer is that yellow tongue particleboard is a proven, low-cost structural floor with no insulation, while Platinum “R” Floor combines structural flooring and insulation in a single panel. The right choice comes down to the site, the build type and how much the floor itself needs to contribute to thermal performance.

This comparison sets out how the two options differ, so builders can make the call with the full picture rather than defaulting to what has always been used.

What Is Yellow Tongue Flooring?

Yellow tongue is structural particleboard flooring, named for the yellow-coloured tongue on its tongue-and-groove edge that identifies the heavy-duty structural grade. It is manufactured from compressed wood particles bonded with resin, then cut into large interlocking sheets, and it has been a standard residential subfloor across Australia for decades because it is fast to lay and cost-effective.

Particleboard flooring provides structure but no insulation, so where thermal performance is required under the floor, insulation has to be installed separately between the joists as an additional step.

What Is Platinum “R” Floor?

Platinum “R” Floor is an insulated subfloor system built on structural insulated panel (SIP) technology, combining structural plywood flooring and an insulated core in one panel. Structural insulated panel systems work by bonding two structural skins either side of that core, so the panel acts as one piece rather than a stack of layers.

Because the insulation is built into the panel, Platinum “R” Floor works within standard framing methods while removing the separate underfloor insulation stage from the subfloor process. It is one of several insulated subfloor systems for modern residential construction that builders are now choosing over traditional particleboard.

Yellow Tongue vs Platinum “R” Floor: The Comparison

The two systems solve the same problem in different ways. The table below sets out the practical differences that matter on site.

How Do They Handle Moisture?

Moisture is the most common concern with particleboard flooring, because yellow tongue sheets can absorb water and swell if they are exposed to rain during construction or to a leak later, which is why manufacturers require them to be kept dry and the joints glued. Platinum “R” Floor uses structural plywood facings that handle typical site exposure better than a particleboard core, which reduces risk on builds where the subfloor is open to the weather for part of the program. This tolerance also carries through to detailing like wet-area set downs.

Thermal Performance Under the Floor

This is the clearest difference between the two. Yellow tongue has no thermal value on its own, so any insulation requirement has to be met by a separate product installed between the joists.

Platinum “R” Floor carries its insulation inside the panel, so the floor contributes to the thermal performance of the building envelope as soon as it is laid. This matters most in elevated homes and on sloping blocks where the subfloor is exposed to airflow underneath, and it is a large part of why SIPs deliver superior insulation and stronger energy performance in Brisbane homes.

Installation Speed and Stages

On paper particleboard sheets go down quickly, but the full picture depends on whether insulation is needed. When a build requires underfloor insulation, the particleboard route becomes two separate stages with the coordination and sequencing that adds, whereas Platinum “R” Floor combines structure and insulation into a single installation that reduces stages during the subfloor phase and helps keep the program moving toward lock-up. This efficiency is a big reason more builders are switching to insulated subfloor systems.

Where Particleboard Is Still Commonly Used

Particleboard flooring is not the wrong choice for every build, and it remains a common, cost-effective option for standard, enclosed residential floors where there is no significant thermal requirement underneath. The point of this comparison is not that one product is always better, but that the two are built for different priorities.

Why Builders Choose Platinum “R” Floor

Platinum “R” Floor is designed to do more than provide structure, and it suits residential construction of all kinds while delivering clear advantages for builders:

• Built-in insulation, so the floor contributes to the building envelope from the moment it is laid
• Fewer installation stages and less trade coordination during the subfloor phase
• Factory-manufactured panels that improve consistency and reduce variability across projects
• Strong performance on elevated homes, sloping blocks and exposed subfloors, which are common across Brisbane and South East Queensland

These are the same qualities that make our floor panel systems for builders and modern subfloor solutions a practical upgrade on the traditional particleboard subfloor. Supply across Brisbane is arranged per project.

Frequently Asked Questions

Is yellow tongue flooring the same as particleboard?

Yes. Yellow tongue is a structural grade of particleboard flooring, and the yellow tongue on the edge simply identifies the heavy-duty flooring grade. Builders comparing it with an insulated alternative often look at Platinum “R” Floor, which replaces the particleboard sheet with a structural insulated panel that combines flooring and insulation in one.

Does yellow tongue flooring swell if it gets wet?

Particleboard can absorb water and swell if it is exposed to moisture, which is why manufacturers require the sheets to be kept dry during construction and the joints glued. Platinum “R” Floor uses structural plywood facings that are more tolerant of site conditions, so it carries less moisture risk while the subfloor is exposed. Platinum Timber & Ply can advise on the right panel for weather-exposed and wet-area applications.

What can I use instead of yellow tongue flooring?

Platinum “R” Floor from Platinum Timber & Ply is a direct alternative that combines structural flooring and insulation in a single panel. It is one of a range of insulated subfloor systems designed to replace the two-stage particleboard-plus-insulation approach with a single, more efficient install.

Does Platinum “R” Floor cost more than particleboard?

The sheet price of a Structural Insulated Panel and a particleboard sheet are not directly comparable, because Platinum “R” Floor includes the insulation and removes a separate installation stage. The fairer comparison is the total installed cost across flooring plus insulation plus labour, where Platinum “R” Floor closes much of the gap. For pricing on a specific project, contact Platinum Timber & Ply for a quote.

Is Platinum “R” Floor suitable for elevated and multi-storey homes?

Yes. Platinum “R” Floor is well suited to elevated homes, sloping blocks and multi-storey builds where the subfloor is exposed and thermal performance underneath matters. Its factory-made consistency and single-step installation also help Platinum Timber & Ply customers keep these more complex builds on schedule.

Does Platinum “R” Floor work with standard framing?

Yes. Platinum “R” Floor works within standard framing methods and does not replace the structural framing of the build. This lets builders adopt the Platinum Timber & Ply system without changing how they frame, while gaining insulation and installation-stage savings at the subfloor.

Choosing the Right Subfloor for Your Build

Yellow tongue particleboard and Platinum “R” Floor both have a place in Australian residential construction, with particleboard offering a low-cost structural floor and Platinum “R” Floor delivering structure and insulation in one panel, fewer installation stages and better thermal performance under the floor. Set against the alternatives, the structural flooring materials a builder can choose from differ mainly in how much of the floor’s job each one finishes, and the tongue and groove flooring and wider flooring range cover the rest of the specification.

Platinum “R” Floor works as a complete subfloor system, and the same principle carries through the wider range of structural insulated panels for flooring. For advice on the right subfloor for a specific project, contact the Platinum Timber & Ply team.

The demands placed on modern residential construction continue to evolve. Builders are under pressure to deliver homes more efficiently, improve energy performance, manage labour costs and meet growing homeowner expectations around comfort and sustainability.

As a result, more builders across Australia are moving away from traditional subfloor systems and exploring insulated subfloor systems that provide both structural performance and built-in thermal benefits.

Products such as Platinum “R” Floor are helping drive this shift by offering a practical insulated flooring system designed specifically for Australian residential construction.

What Is an Insulated Subfloor System?

An insulated subfloor system combines a structural flooring surface with integrated insulation to improve thermal performance beneath the home.

Unlike traditional flooring systems that often require separate insulation products to be installed as additional stages of construction, insulated flooring systems bring these elements together into a single solution.

For builders, this can help simplify construction workflows while providing homeowners with improved comfort and energy efficiency.

Platinum “R” Floor is an Australian-made insulated subfloor system that incorporates Structural Insulated Panel (SIP) technology, combining structural strength with built-in insulation in a practical flooring solution for residential projects.

Why Traditional Subfloor Systems Are Being Reconsidered

Many traditional subfloor systems continue to perform well structurally, but they can introduce additional installation stages and coordination requirements during construction.

Builders often need to consider:

• Separate insulation installation
• Additional labour requirements
• Multiple construction stages
• Variability in insulation coverage
• Increased coordination between trades

As labour availability and project timelines become increasingly important, builders are looking for ways to streamline construction without compromising performance.

This is one reason insulated subfloor systems have become increasingly popular across residential projects throughout Australia.

Faster Construction and Simplified Installation

One of the biggest advantages of modern insulated flooring systems is the ability to simplify the subfloor stage of construction.

Builders are constantly looking for ways to reduce complexity on site and keep projects progressing smoothly. By incorporating insulation directly within the flooring system, fewer installation stages may be required compared with traditional approaches.

For residential builders managing multiple projects, even small efficiencies can contribute to improved project flow and more predictable construction schedules.

This focus on efficiency is one of the reasons Platinum “R” Floor continues to gain traction among builders seeking practical flooring system solutions.

Improved Energy Efficiency for Australian Homes

Energy efficiency has become a major consideration in modern residential construction.

Homeowners increasingly expect homes that are comfortable year-round and less reliant on heating and cooling systems. At the same time, builders are seeking products that help support better thermal performance outcomes.

An insulated flooring system can help reduce heat transfer through the floor structure, contributing to a more comfortable internal environment.

For homes built in Queensland and other regions with varying seasonal temperatures, improving the building envelope can play an important role in long-term energy performance.

This makes insulated subfloor systems an attractive option for both builders and homeowners looking to achieve better thermal outcomes.

Consistency Through Factory-Manufactured Systems

Another reason builders are embracing structural insulated panels and insulated floor panels is consistency.

Factory-manufactured systems provide a level of quality control that can help reduce variability across projects.

Rather than relying on multiple materials and installation stages, builders can work with a purpose-designed flooring system that arrives ready for installation.

This consistency is particularly valuable for:

• Residential developments
• Custom home builds
• Elevated homes
• Modular construction projects
• Multi-storey residential builds

As demand for efficient building methods continues to increase, factory-manufactured flooring systems are becoming an important part of modern construction practices.

Well Suited to Modern Residential Construction

Today’s residential projects often involve more complex site conditions and performance expectations than ever before.

Builders may be working on:

• Sloping blocks
• Elevated homes
• Coastal properties
• Modular homes
• Multi-storey residences

Insulated subfloor systems provide a practical solution for these types of projects by combining structural performance and thermal efficiency within a single flooring system.

This versatility has contributed to growing interest in insulated flooring solutions across Australia.

Why Builders Are Choosing Platinum “R” Floor

Platinum “R” Floor has been developed specifically for Australian residential construction and continues to be adopted by builders looking for a smarter approach to subfloor construction.

Key advantages include:

• Australian-made manufacturing
• Integrated insulation
• Structural SIP panel design
• Improved thermal performance
• Reduced installation complexity
• Suitable for residential and modular construction
• Consistent factory-manufactured quality

For builders seeking an insulated subfloor system that supports efficiency, performance and build quality, Platinum “R” Floor offers a practical alternative to traditional flooring systems.

The Future of Residential Flooring Systems

The construction industry continues to evolve, and builders are increasingly looking for solutions that deliver both performance and efficiency.

Insulated subfloor systems are becoming a more common choice because they help address multiple project requirements at once, including thermal performance, buildability and construction efficiency.

As demand for energy-efficient homes continues to grow, products such as Platinum “R” Floor are helping redefine what builders expect from a modern flooring system.

For residential builders across Australia, the move towards insulated flooring systems is not simply about insulation. It is about building smarter, improving project outcomes and delivering greater value for homeowners.

Frequently Asked Questions

What is an insulated subfloor system?

An insulated subfloor system combines structural flooring and insulation within a single system to improve thermal performance and simplify construction.

What are the benefits of insulated flooring systems?

Insulated flooring systems can help improve energy efficiency, reduce heat transfer, simplify installation processes and support more consistent project outcomes.

Are insulated subfloor systems suitable for Australian homes?

Yes. Insulated subfloor systems are increasingly used throughout Australia, particularly in residential projects where thermal performance and construction efficiency are priorities.

What is Platinum “R” Floor?

Platinum “R” Floor is an Australian-made insulated flooring system that uses Structural Insulated Panel (SIP) technology to provide both structural performance and built-in insulation for residential construction.

Where can Platinum “R” Floor be used?

Platinum “R” Floor is suitable for a wide range of residential applications, including elevated homes, custom builds, modular homes and multi-storey residential projects.

Modern residential construction increasingly focuses on comfort, energy efficiency and long-term performance. While walls and roofing systems receive significant attention, the flooring system plays a critical role in how a home feels and performs day to day.

For residential builders across Queensland and Australia, Platinum “R” Floor from Platinum Timber & Ply provides an insulated subfloor system that delivers both thermal and acoustic advantages. Installed over engineered timber or steel joists, Platinum “R” Floor combines structural plywood surfaces with an insulated core to create a high-performance flooring system suited to modern family homes.

Why Acoustic Performance Matters in Residential Homes

Noise transfer within a house can significantly affect comfort, particularly in:

• Two-storey homes
• Homes with open-plan living areas
• Families with young children
• Homes with home offices or study areas

Traditional flooring systems installed over joists can allow sound to travel easily between levels or across rooms. Footsteps, movement and everyday activity can transmit through the structure.

An insulated subfloor system helps dampen this movement by introducing a layer of insulation within the floor structure.

How Platinum “R” Floor Improves Acoustic Comfort

Platinum “R” Floor uses a structural insulated panel design that incorporates an insulated core between structural plywood surfaces.

This construction helps reduce sound transfer through the floor by:

• Absorbing vibration from foot traffic
• Reducing hollow floor resonance common in standard sheet flooring
• Creating a denser, more stable flooring platform

The result is a flooring system that feels more solid underfoot and contributes to a quieter internal environment.

For families, this often means less noise travelling between floors or rooms.

Ideal for Multi-Storey Residential Homes

Acoustic performance becomes particularly important in two-storey and split-level homes.

In these designs, the floor system acts as the barrier between living spaces. Without insulation within the floor structure, noise can easily travel between levels.

Platinum “R” Floor supports improved acoustic comfort in multi-storey homes by introducing insulation within the floor panel itself. When installed over engineered joists, the system contributes to a quieter separation between upper and lower living areas.

For builders constructing family homes with bedrooms upstairs and living areas below, this can be a noticeable benefit.

A Flooring System That Feels Solid Underfoot

Another commonly reported benefit of insulated floor panels is the feeling underfoot.

Traditional flooring systems can sometimes feel hollow or flexible depending on joist spacing and flooring materials. By combining structural plywood surfaces with an insulated core, Platinum “R” Floor creates a rigid panel that distributes load effectively across the joist system.

Builders often describe the result as a flooring system that feels firm and stable, contributing to the overall perception of build quality.

Thermal Performance for Australian Homes

Beyond acoustic comfort, Platinum “R” Floor also supports thermal performance.

The insulated core helps reduce heat transfer through the floor structure. In elevated homes or homes built on sloping blocks, this can play an important role in maintaining consistent internal temperatures.

Thermal benefits can include:

• Reduced heat entering the home from below
• Improved internal comfort in warmer climates
• Better overall building envelope performance

While whole-of-house performance depends on the complete design, insulated subfloor systems contribute to improved thermal stability.

Well Suited to Queensland Building Conditions

Many homes across Queensland are elevated due to site conditions or flood requirements. In these builds, the floor structure is exposed to external air movement beneath the house.

An insulated subfloor system such as Platinum “R” Floor can help mitigate temperature fluctuations and reduce acoustic transfer through the structure.

Builders across Brisbane, Logan, Scenic Rim, Gold Coast and the Sunshine Coast are increasingly exploring insulated flooring systems that deliver both comfort and performance in these environments.

Supporting Modern Residential Construction

Platinum “R” Floor integrates easily into standard residential construction methods. The panels are installed over engineered timber or steel joists, allowing builders to maintain conventional structural framing while benefiting from an insulated flooring system.

This approach supports:

• Residential homes
• Two-storey houses
• Modular and prefabricated construction
• Raised and sloping block builds

Because the insulation is integrated within the flooring panel, builders can streamline installation compared to systems that require separate underfloor insulation installation.

Why Families Notice the Difference

While structural systems often go unnoticed once a home is finished, flooring performance directly affects daily living.

Families frequently value homes that provide:

• Quieter internal spaces
• Reduced noise between floors
• Consistent internal temperatures
• A solid, stable floor underfoot

By combining structural performance, insulation and acoustic benefits in one panel system, Platinum “R” Floor contributes to a more comfortable residential living environment.

For builders across Australia looking to deliver homes that perform well for modern family life, insulated subfloor systems are becoming an increasingly important part of the construction conversation.

Frequently Asked Questions

Does an insulated subfloor reduce noise between floors?

Yes. A conventional floor built over open joists gives footfall and everyday movement an easy path through the structure, which is why standard sheet flooring can sound hollow. Platinum “R” Floor introduces an insulated core within the floor itself, which dampens that movement and reduces the sound carried between levels.

How does Platinum “R” Floor improve acoustic comfort?

The panel is built as a structural insulated panel, with an insulated core between structural plywood surfaces. That construction absorbs vibration from foot traffic, reduces the hollow resonance common in standard sheet flooring, and produces a denser, more stable platform. The result is a quieter internal environment without any separate acoustic layer.

Is Platinum “R” Floor suitable for two-storey and split-level homes?

Yes, and this is where builders notice it most. In two-storey and split-level designs the floor is the barrier between living spaces, so noise travels between levels unless something in the floor structure stops it. Platinum “R” Floor puts the insulation inside that barrier, supporting a quieter separation between bedrooms above and living areas below.

Why does Platinum “R” Floor feel more solid underfoot?

Combining structural plywood surfaces with a rigid insulated core produces a panel that distributes load evenly across the supporting structure rather than flexing between supports. Builders consistently describe Platinum “R” Floor as firm and stable underfoot, and homeowners read that as build quality long after the subfloor is out of sight.

Does Platinum “R” Floor improve thermal comfort as well as acoustics?

Yes. The same insulated core that reduces sound transfer also reduces heat transfer through the floor, which counts in every residential build and is hardest to achieve where the underside of the floor is exposed to outside air. Platinum Timber & Ply is clear that whole-of-house performance depends on the complete building design, but an insulated subfloor removes one of the common weak points.
